16x16 Deck Plans With A Recessed Bay

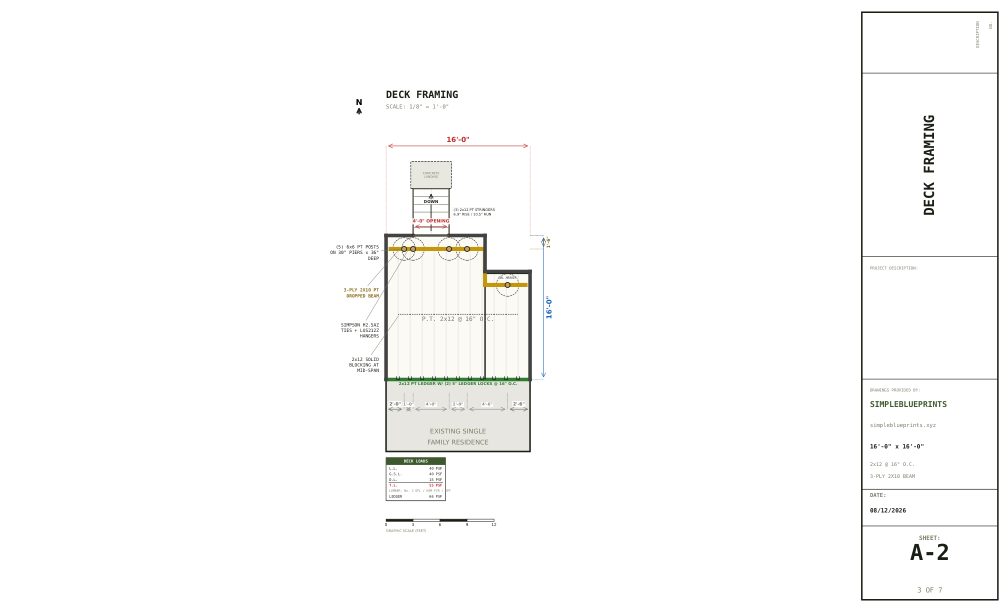

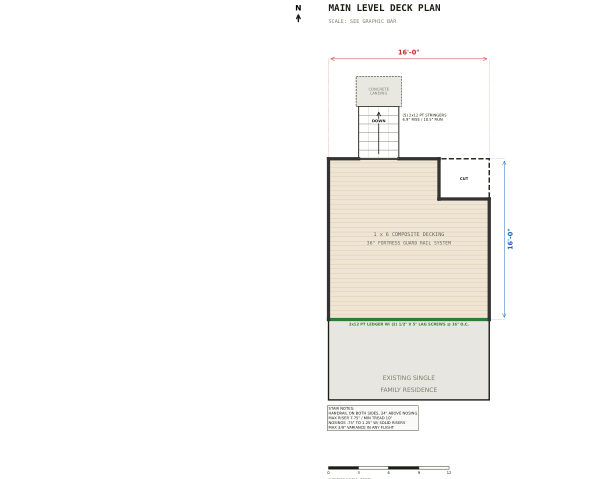

A 16 foot by 16 foot ledger-attached deck with a 5 foot by 4 foot corner cut out of the front right, and a straight stair on the front edge set off center. Decks get notched like this to clear an AC pad, a basement window well, or a tree. The notch is the detail to read on the framing plan: a doubled header carries the joists the cutout interrupts.
Need a different size?
Design any deck in the free wizard and get the same toolkit, built for your exact dimensions:
- Build stages with 3D renders at every step
- Materials list at current lumber prices
- Cut list for the lumber yard
Ready for a permit? Add your property and the full permit set is drawn on your actual lot.
Design your own deckFree deck planning set, build stages, and step-by-step guide
Planning Set
Decide on this deck and price the build.
- Deck layout with dimensions
- Materials and cost estimate at current lumber prices
- Cut list you can hand to the lumber yard

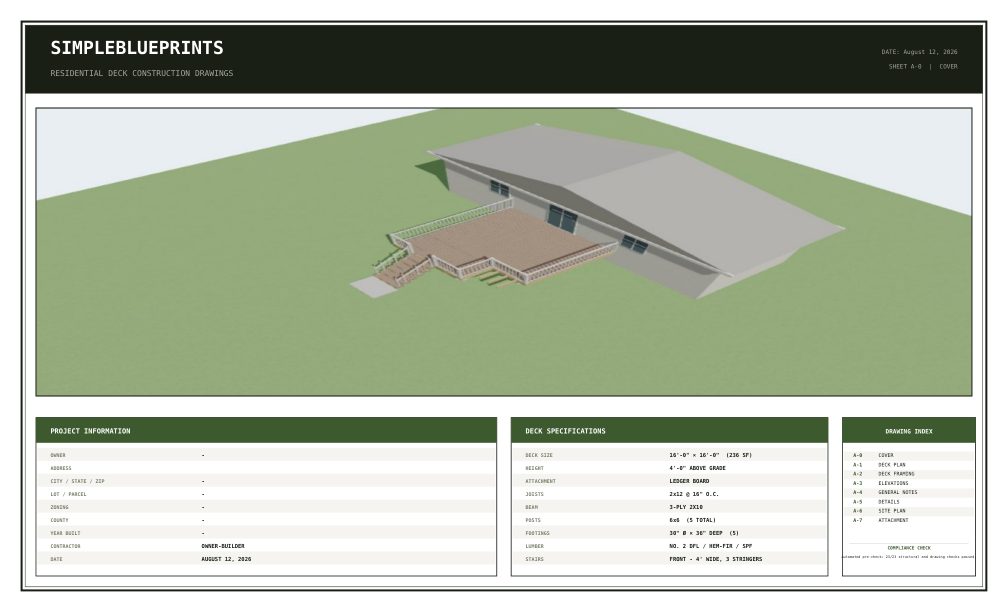

What the 8-sheet permit set looks like
Most building departments want a site plan showing the lot, house, deck, and setbacks, plus a framing plan, elevations, structural details, general notes, and the ledger attachment detail. The permit set is all of those, drawn on your actual property from public records, with IRC 2021 citations on the framing plan. The free planning set above does not include these sheets.

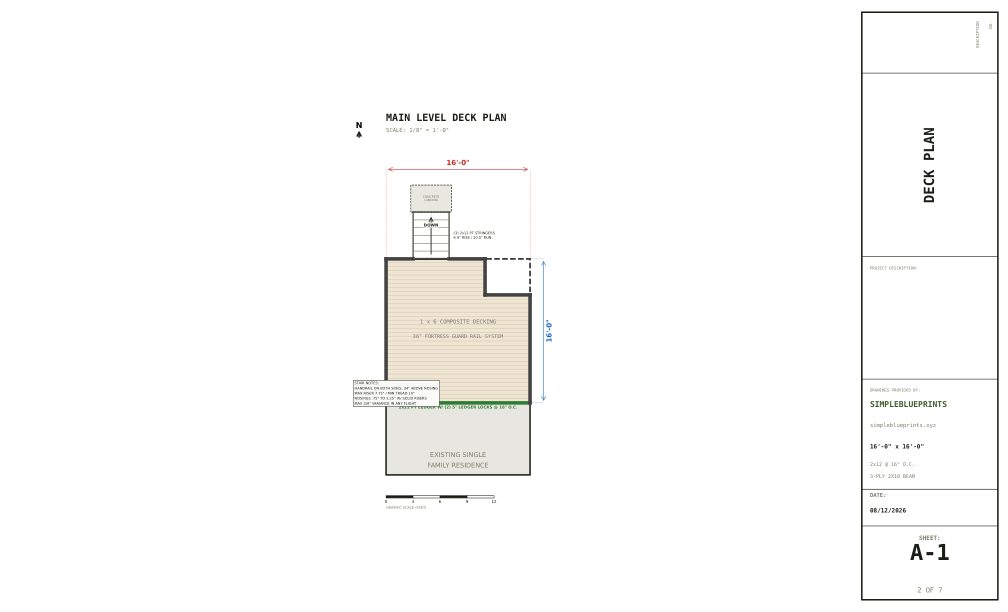

- Deck plan layout with dimensions
- Materials and cost estimate
- Lumber cut list
- Build stages with 3D renders
- Step-by-step build guide
- Framing plan with IRC 2021 citations

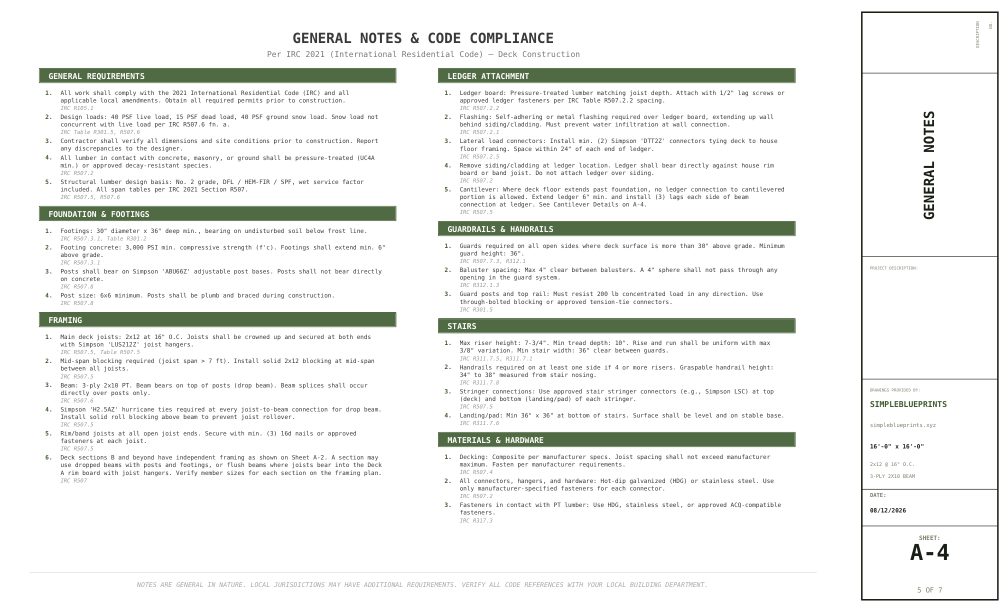

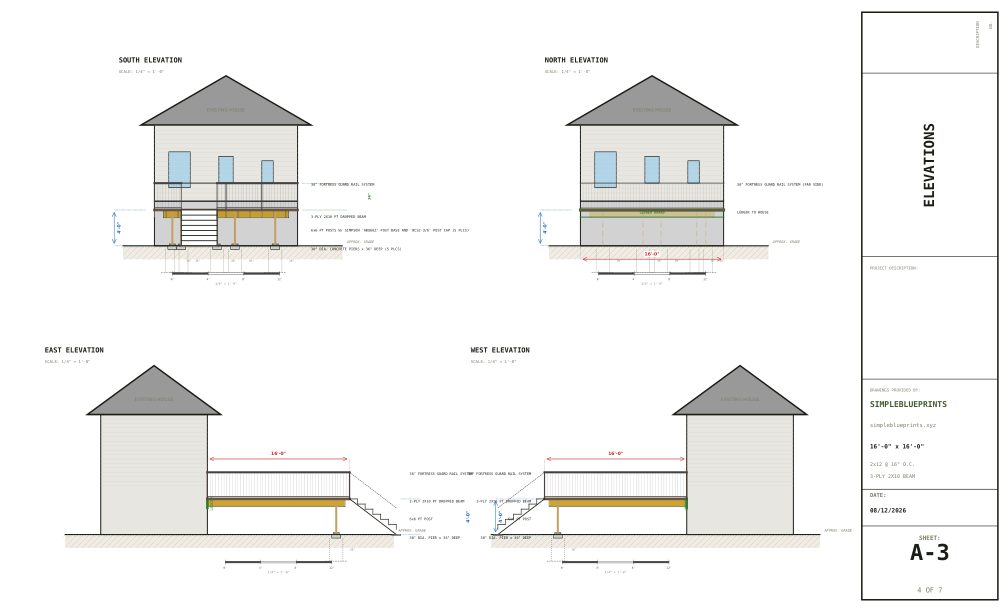

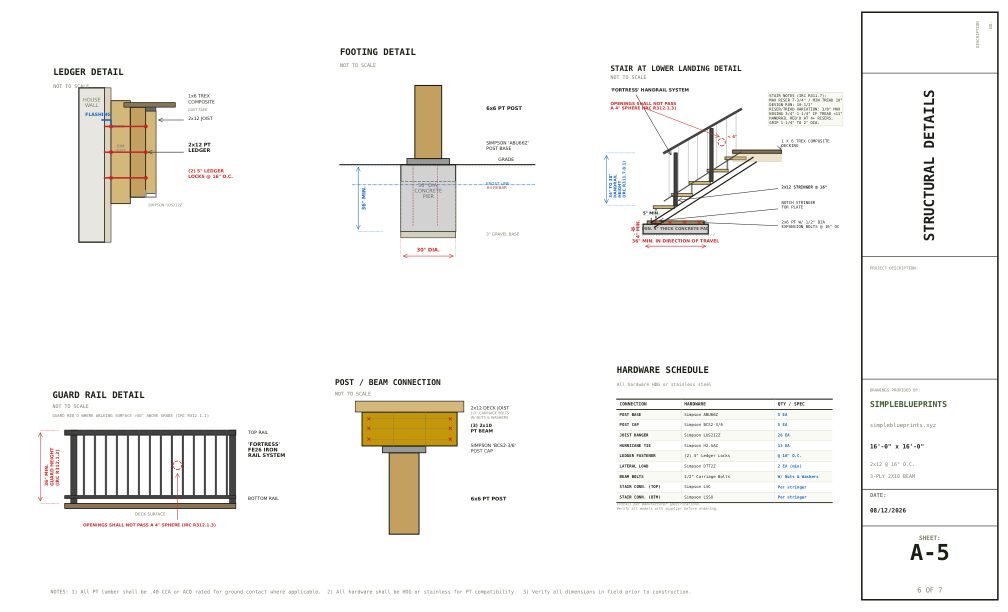

- Elevations, structural details, general notes

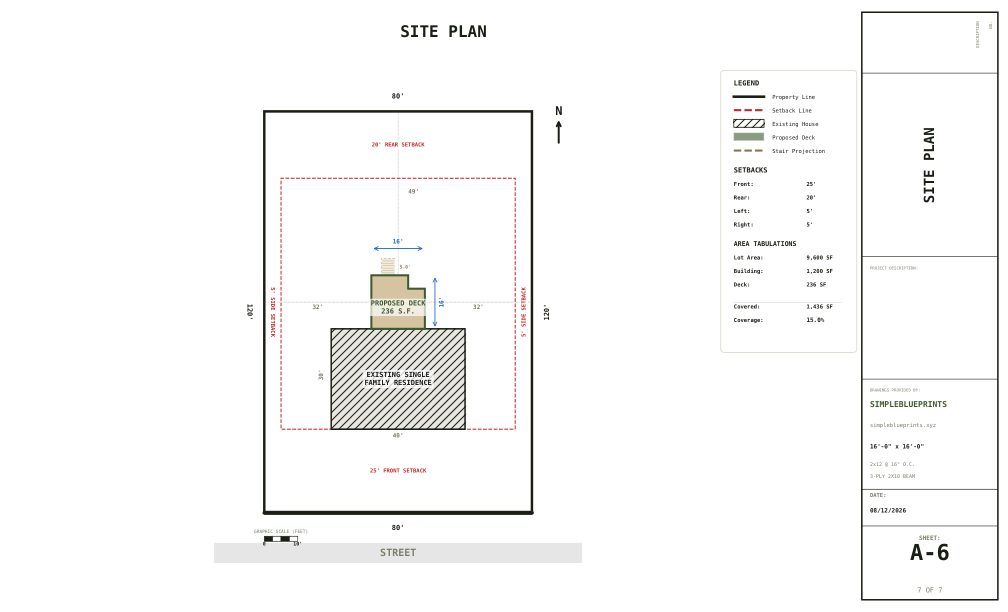

- Site plan from your lot and house (public records)

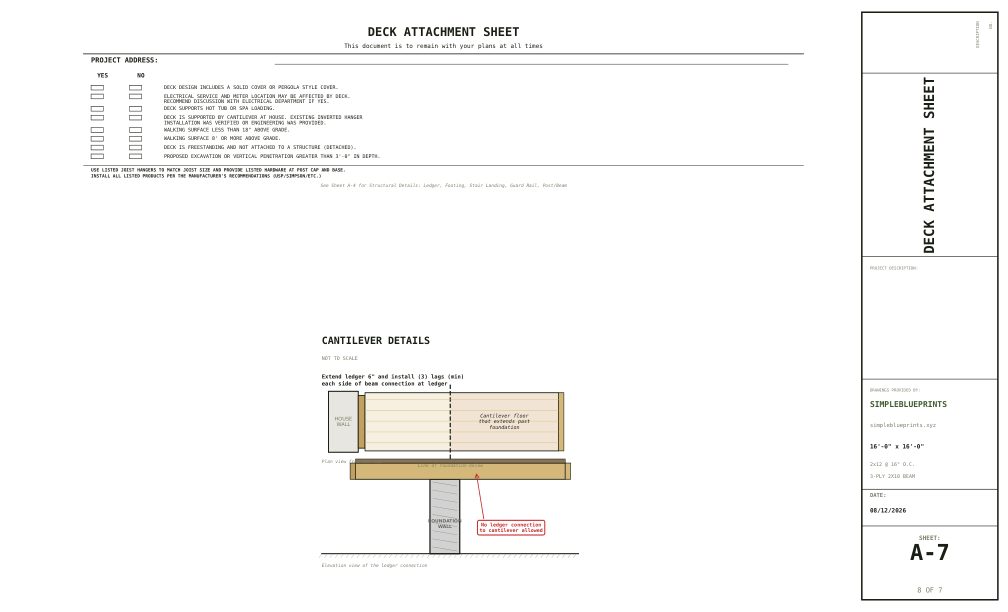

- Ledger attachment sheet
- Title block with your name and address on every sheet
- 36x24 architectural sheets plus home-print sizes
Deck specifications
| Deck size | 16'-0" x 16'-0" with a 5'-0" x 4'-0" corner cutout (236 sq ft) |
| Height above grade | 4'-0" |
| Attachment | Ledger to house band joist |
| Beam | Dropped |
| Joist spacing | 16" on center |
| Decking | 1x6 composite |
| Guard rail | 36" Fortress rail system |
| Stairs | One straight flight, front edge, offset 3'-0", 4'-0" wide |
| Design loads | Moderate snow, cold frost zone |
Common questions
Do I need a permit for a 16x16 deck with a Recessed Bay?
Most jurisdictions require a permit for an attached deck. Your building department will typically ask for a site plan, framing plan, elevations, structural details, and the ledger attachment detail. This set includes all of those. Check with your local building department for their specific requirements.
How much does a 16x16 deck with a Recessed Bay cost to build?
The materials and cost estimate in the free planning set comes to about $8,200 for this design, with composite decking, the Fortress rail, 8% sales tax and 5% for waste, at average home center prices. Your region and supplier will move it. Labor adds $15 to $35 per square foot if you hire a contractor.
What size lumber do I need for a 16x16 deck with a Recessed Bay?
This design uses 16" on center for the deck frame, set 4'-0" above grade. Every member size is calculated from the IRC 2021 prescriptive span tables, with the code section cited on the framing plan.
What is included in the free deck plans?
The free planning toolkit includes two documents. The planning set has the deck layout with dimensions, a materials and cost estimate, and a lumber cut list. The build guide explains how and why, from digging footings to the final inspection. Together they are everything you need to plan the build, price the lumber, and understand the construction before you start.
What does the permit set add?
The permit set ($29.99) adds framing plans with IRC 2021 code citations, elevations, structural details, general notes, a site plan drawn from your actual lot and house, and a title block with your name and address on every sheet. It is what your building department needs to issue the permit. The free planning toolkit does not include permit drawings.
